- Size: 40
- Place of Origin: Tengzhou, Shandong,China
- Brand Name: YOURONGXILI
- Model Number: X2012
- Weight: 10000.000 kg

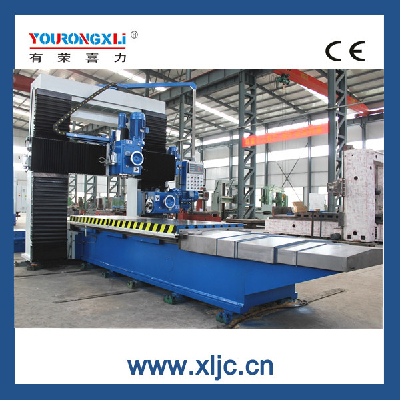

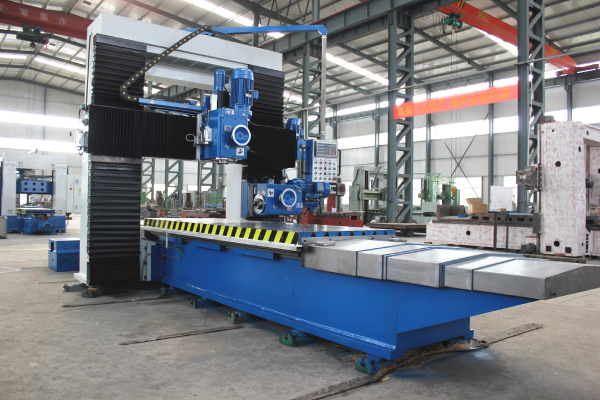

X2012 Gantry milling machine
Specification | Unit | X2012 | ||
Max. travel | Length | mm | 4000 | |
Width | mm | 1400 | ||
Height | mm | 1200 | ||
Distance between columns | mm | 1600 | ||
Table size | Length | mm | 2000/3000/4000 | |
Width | mm | 1250 | ||
Table feeding speed | Feed | mm/min | 25-450 | |
Rapid travel | mm/min | 1300 | ||
Spindle taper | 7:24, ISO50 | |||
Spindle speed step | r/min | 6steps 82-505 | ||
Spindle swivel angle | ±35° | |||
Feed rate of milling head | mm | 沿横梁Along the cross rail:65/320/890 侧铣Side milling head:50/265/730 | ||
Power of spindle motor | kw | 7.5 | ||
Power of table motor | kw | 7.5 | ||
Overall size | Length | mm | 9000 | |
Width | mm | 3550 | ||
Height | mm | 3150 | ||
OPTIONAL ACCESSORIES
1.Airtight cover
2.Digital Readout
3.Pneumatic tool locking mechanism
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Any Question, Feel free contact me
Whatsapp: 86 13606326092
QQ:13606326092
Skype: irislvmengze
Email:13606326092@163.com
