- Size: 11cbm
- Place of Origin: Tengzhou, Shandong,China
- Brand Name: YOURONGXILI
- Model Number: X5032
- Weight: 2950.000 kg

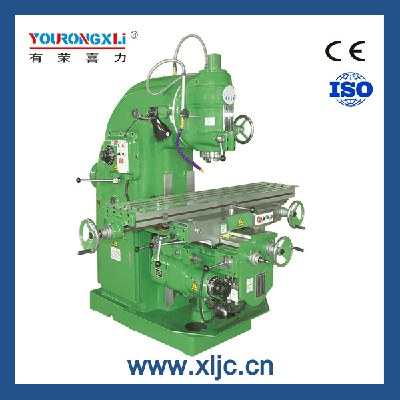

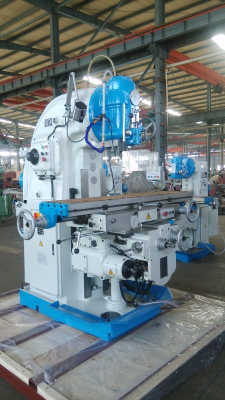

X5032 Vertical Knee Type Milling Machine
1.CNC System can be installed
2.4th axis:cnc rotary table, cnc dividing head is available
Specification
Specification | Unit | X5032 | X5032B | X5032H | X5032BH | ||
Table size | mm | 320X1325 | 320X1600 | 320X1325 | 320X1600 | ||
T-slots（NO./Width/Pitch) | 3/18/70 | ||||||
Longitudinal travel (manual/auto) | mm | 700/680 | 900/880 | 700/680 | 900/880 | ||
Cross travel (manual/auto) | mm | 255/240 | |||||
Vertical travel (manual/auto) | mm | 370/350 | 460/440 | ||||
Rapid feed speed X/Y/Z | mm/min | 2300/1540/770 | |||||
Spindle bore diameter | mm | 29 | |||||
Spindle taper | 7:24 ISO50 | ||||||
Spindle speed range | r/min | 30-1500 | |||||
Spindle speed step | steps | 18 steps | |||||
Stroke of spindle quill | mm | 70 | |||||
Max.swivel angle of vertical milling head | ±45° | ||||||
Distance between spindle nose and table surface | mm | 30-400 | 30-490 | ||||
Distance between spindle axis and column guideway | mm | 350 | |||||
Feed motor power | kw | 1.5 | |||||
Main motor Power | kw | 7.5 | |||||
Overall size(L×W×H) | mm | 2294×1770×1904 | 2294×2050×1904 | 2294×1770×2084 | 2294×2050×2084 | ||
Net weight | kg | 2900/3200 | 3000/3300 | 3100/3400 | |||
Standard Accessories
name | Specification Model | Qty |
Drawbar | 1set | |
ISO50 Mill chuck | 4,5,6,8,10,12,14,16 | 8 pieces/set |
ISO50 Cutter arbor Cutter arbor | φ40 | 1 piece |
7：24 The middle set of | 7：24 ISO50/MS4 | 1piece |
Oil gun | 1 piece | |
Inner hexagon spanner | 6 | 1 piece |
Double-ended wrench | 17x19 | 1 piece |
Double-ended wrench | 22x24 | 1 piece |
Double-ended wrench | 27x30 | 1 piece |
Double-ended wrench | 32x36 | 1 piece |
Single head spanner | 14 | 1 piece |
Single head spanner | 50 | 1 piece |
Inner hexagonal wrench | 5 | 1 piece |
Inner hexagonal wrench | 8 | 1 piece |
Inner hexagonal wrench | 10 | 1 piece |
