- Size: 12
- Place of Origin: China
- Brand Name: YOURONGXILI
- Model Number: X5750
- Weight: 5000.000 kg

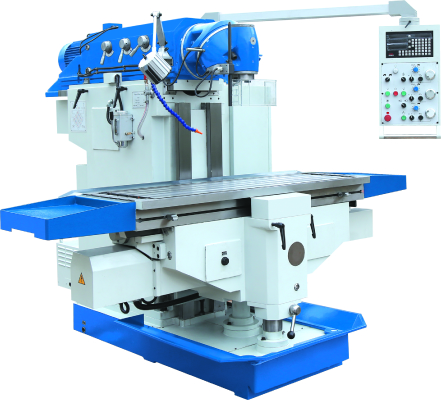

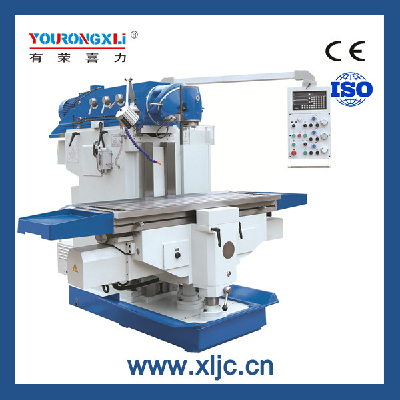

Specification
Specifications | Unit | X5750 |
Table size | mm | 500*1600 |
T-slots(NO./width/pitch) | mm | 5*18*80 |
Table travel (X/Y/Z) | mm | 1200*700*500 |
Swivel angle of milling head | - | 360° |
Spindle taper | - | ISO50 |
Spindle speed range | r.p.m | (27) 30-2050 |
Table feed(X/Y/Z) | mm/min | 10-1000/10-1000/5-500 |
Table rapid speed | 2200/2200/1100 | |
Distance between spindle nose and table surface | mm | 50-550 |
Distance from spindle center line to column | mm | 28-728 |
Main motor power | Kw | 7.5 |
Feed motor | Kw | AC servo motor X/Y:15NM; Z: 18NM |
Max load | Kg | 1800 |
Overall size | mm | 2625*2460*2080 |
weight | kg | 5000 |
- Size: 12
- Place of Origin: China
- Brand Name: YOURONGXILI
- Model Number: X5750
- Weight: 5000.000 kg
Standard Accessories
No. | Item | Specification model | Qty |
1 | Draw bar | 1 | |
2 | Milling chuck 8pcs | ISO50 | 1 set |
3 | Milling arbor | ISO50/Φ27 | 1 |
4 | 7:24 the middle sleeve | 7:24 ISO50/MS4 | 1 |
5 | Double-ended wrench | S12-14,S22-24 | 1 |
6 | Allen wrench | 5, 8, 10 | 1 |
7 | Oil gun | 1 | |
8 | Halogen lamp | 1 |
