Product Details

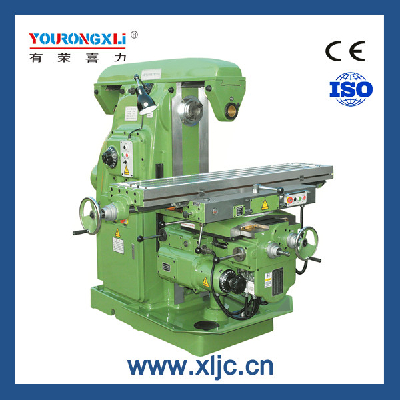

X6132 Universal Knee Type Milling Machine

1.Vertical milling head,Universal milling head is available

2.Rotary table is standard accesories

3.CNC System can be installed

4.4th axis:cnc rotary table, cnc dividing head is available

Specification

specification	unit	X6132	X6132B		X6132H	X6132BH
Table size	mm	320X1325	320X1600		320X1325	320X1600
Max Longitudinal travel(manual/auto)	mm	700/680	900/880		700/680	900/880
Max transverse travel(manual/auto)	mm	255/240
Max vertical travel(manual/auto)	mm	320/300			410/390
Max rotary angle		±45°
Distance between spindle axis table	mm	30/350		30/440
Spindle speed step		18 steps
Spindle speed range		30-1500
Feed range of table travel	steps	18 steps
Main motor power	kw	7.5
Feed motor power	kw	1.5
Overall size (L x W x H)	mm	2294X1770X1610	2294X2050X1610		2294X1770X1790	2294X2050X1790
N.W/G.W	kg	2650/2950	2740/3040		2850/3150	2940/3240
