- Size: 10cbm
- Place of Origin: Tengzhou ,Shandong, China
- Brand Name: YOURONGXILI
- Model Number: X6432
- Weight: 2900.000 kg

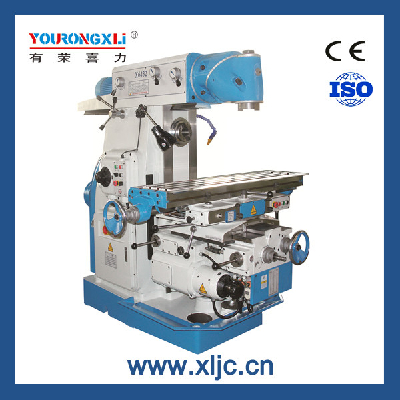

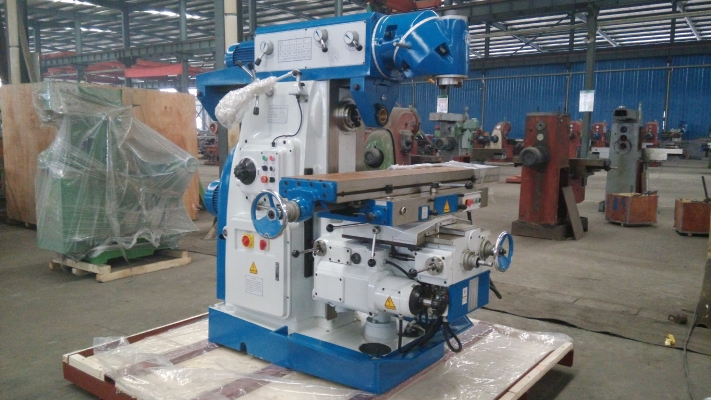

X6432 multifunctional precise milling machine
1.vertical and horizontal multifunctional milling
2.This milling machine with universal milling head which can swivel 360 degress,can be add slotting head.
3.Table swivel 45°, Multi-angle processing.
4.Gear drive , Auto feed on two axis,motorized lift on Z axis
5.Hardened on x, y, z axis,Rectangular guideway, stable, good rigidity.
6.Ball screws can be ordered instead of standard leads screws at special request.
Specification
Specification | unit | X6432 | X6432B |
Table size | mm | 320×1325 | 320×1600 |
Max Longitudinal travel(manual/auto) | mm | 700～680 | 900～880 |
Max transverse travel(manual/auto) | mm | 255～240 | 255～240 |
Max transverse vertical travel(manual/auto) | mm | 320～300 | 320～300 |
Max rotary angle | ±45° | ±45° | |
T Slots(N*W*D) | 3/18/70 | ||
Spindle hole taper | mm | 7：24 ISO50 | 7：24 ISO50 |
Diameter of spindle bore | (V)：Φ29 (H)：Φ29 | (V)：Φ29 (H)：Φ29 | |
Diameter of spindle front bearing | mm | Φ90 | Φ90 |
Distance of Horizontal spindle axis to table surface： | mm | 30～350 | 30～350 |
Distance of table center to vertical spindle | mm | 190～510 | 190～510 |
Distance of table center to vertical ways of column | mm | 470～215 | 470～215 |
Distance of table center ram | mm | 155 | 155 |
Speed steps | (V)：12 (H)：18 | (V)：12 (H)：18 | |
Spindle speed range | r.p.m | (V:)60～1750(H:)30～1500 | |
Table feed steps | 18 | 18 | |
Table feed range Longitudinal | mm/min | 23.5～1180 | 23.5～1180 |
Table feed range cross | mm/min | 23.5～1180 | 23.5～1180 |
Table feed range vertical | mm/min | 8～394 | 8～394 |
Table rapid moving speed Longitudinal/cross | mm/min | 2300 | 2300 |
Table rapid moving speed vertical | mm/min | 770 | 770 |
Power of spindle | Kw | (V:)4(H:)7.5 | |
Spindle of motor range | r.p.m | 1440 | 1440 |
Feed motor | Kw | 1.5 | 1.5 |
Feed of motor range | r.p.m | 1440 | 1440 |
Net Weight | Kg | 2900 | 3000 |
Overall sizes | mm | 2294×1770×1780 | 2294×2050×1780 |
Standard Accessories
Specification Model | Qty | |
ISO50 Cutter arbor Cutter arbor | φ40 | 1 piece |
Horizontal arbor assembly | Φ22 | 1 piece |
Horizontal arbor assembly | Φ27 | 1 piece |
Horizontal arbor assembly | Φ32 | 1 piece |
Oil gun | 1 piece | |
Drawbar | M24x720 | 1 piece |
Double-ended wrench | 13x14 | 1 piece |
Double-ended wrench | 27x30 | 1 piece |
Double-ended wrench | 32x36 | 1 piece |
Inner hexagonal wrench | 5 | 1 piece |
Inner hexagonal wrench | 8 | 1 piece |
Inner hexagonal wrench | 10 | 1 piece |
