- Size: 10cbm
- Place of Origin: Tengzhou, Shandong,China
- Brand Name: YOURONGXILI
- Model Number: XL5032 XL5036
- Weight: 2900.000 kg

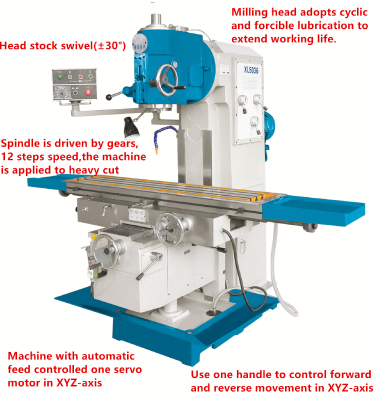

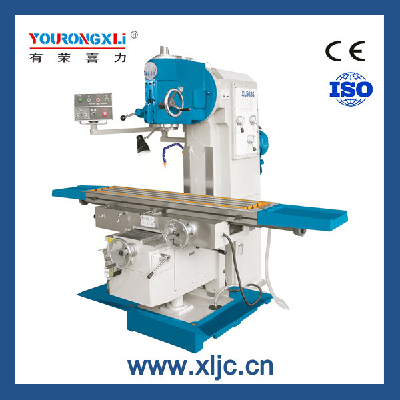

XL5036 XL5032 Vertical Milling Machine
1.Rotary table can be ordered
2.Driven by servo motor
3.CNC System can be installed
4.4th axis:cnc rotary table, cnc dividing head is available
Specification
Specification | Unit | XL5032 | XL5032C | XL5032CL |
Table size | mm | 1325X320 | 1600X320 | |
T-slots（NO./Width/Pitch) | 3/18/70 | |||
Longitudinal travel | mm | 750 | 1100 | 1300 |
Cross travel | mm | 320 | ||
Vertical travel | mm | 460 | 450 | |
Table feed (X/Y/Z) | mm/min | 30-750/20-500/15-375 8级steps | ||
Table rapid speed（X/Y/Z） | mm/min | 1200/800/600 | ||
Spindle taper | 7:24 ISO50 | |||
Spindle speed range | r.p.m | 50-1475 | ||
Spindle speed step | steps | 12级steps | ||
Spindle travel | mm | 70 | ||
Max. swivel angle of vertical milling head | ±30° | |||
Distance between spindle nose and table surface | mm | 50-510 | 50-500 | |
Distance between spindle axis and column guideway | mm | 378 | ||
Torque of X/Y/Z axis AC servo motor | N.m | 10 | ||
Main motor Power | kw | 5.5 | ||
Overall dimensions (L×W×H) | mm | 1800×2100×2150 | 2245×2100×2150 | 2520×2100×2150 |
Net weight | kg | 2750 | 2850 | 2900 |
Specification | Unit | XL5036 | XL5036C | XL5036CL |
Table size | mm | 1325X360 | 1600X360 | |
T-slots（NO./Width/Pitch) | 3/18/70 | |||
Longitudinal travel | mm | 750 | 1100 | 1300 |
Cross travel | mm | 320 | ||
Vertical travel | mm | 460 | 450 | |
Table feed (X/Y/Z) | mm/min | 30-750/20-500/15-375 8级steps | ||
Table rapid speed（X/Y/Z） | mm/min | 1200/800/600 | ||
Spindle taper | 7:24 ISO50 | |||
Spindle speed range | r.p.m | 50-1475 | ||
Spindle speed step | steps | 12级steps | ||
Spindle travel | mm | 70 | ||
Max. swivel angle of vertical milling head | ±30° | |||
Distance between spindle nose and table surface | mm | 50-510 | 50-500 | |
Distance between spindle axis and column guideway | mm | 378 | ||
Torque of X/Y/Z axis AC servo motor | N.m | 10 | ||
Main motor Power | kw | 5.5 | ||
Overall dimensions (L×W×H) | mm | 1800×2100×2150 | 2245×2100×2150 | 2520×2100×2150 |
Net weight | kg | 2800 | 2900 | 3000 |
Standard Accessories
Description | Specification | Quantity |
Crank | 1 | |
Wrench | 1 | |
Inner hexagon spanner | 5 | 1 |
Inner hexagon spanner | 10 | 1 |
Milling arbor | 27 | 1 |
Milling arbor | 40 | 1 |
Slide rod | M24 | 1 |
NUT | M24 | 2 |
Vice | 200 | 1 |
7:24 sheath | 1 |
