- Size: 10cbm
- Place of Origin: Tengzhou ,Shandong, China
- Brand Name: YOURONGXILI
- Model Number: XL6230
- Weight: 1850.000 kg

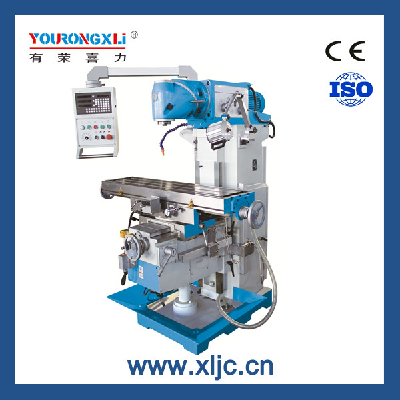

XL6230 medium size universal milling machine
Specifications
Specifications | Unit | XL6230 | XL6230A | XL6230B | XL6230C | |
Table size | mm | 1270*300 | 1370*300 | 1270*300 | 1370*300 | |
T-slots(NO./width/pitch) | mm | 3*14*80 | ||||
Max table travel - X/Y/Z | mm | 720/300/400 | 820/300/400 | 900/380/400 | 1000/380/400 | |
Spindle taper | - | 7:24 ISO40 | ||||
Distance between spindle nose and table surface | mm | 100-500 | ||||
Spindle speed range | r.p.m | 11 steps 45-1660 | ||||
Max swivel angle of milling head | - | 360° | ||||
Table feed(X/Y/Z) | mm/min | XY:30-830 Z:23-625 | ||||
Table rapid speed | 1335/1335/1000 | |||||
Main motor power | Kw | 2.2 or 3 | ||||
Torque of X/Y/Z axis AC servo motor | Nm | 10 | ||||
Overall size | mm | 1730*1760*1700 | 1830*1760*1700 | 1730*1760*1700 | 1830*1760*1700 | |
