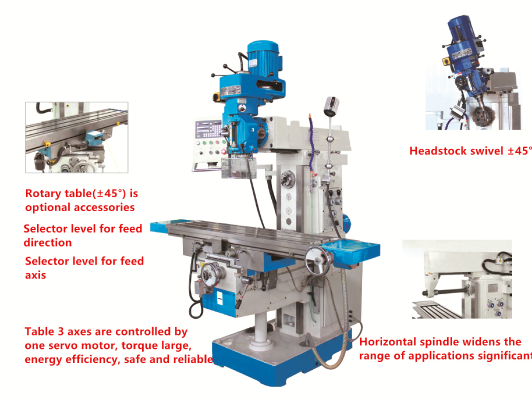

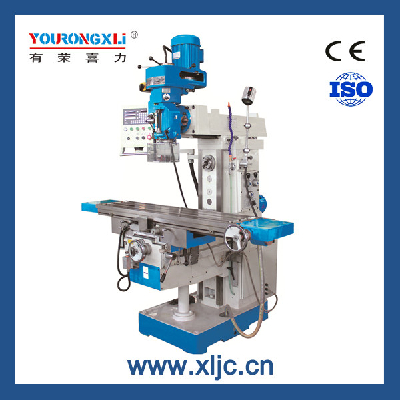

XL6330 Universal Turret Milling Machine
Specifications | Unit | XL6330 | XL6330A | XL6330B | XL6330C |
Table size | mm | 1270X300 | 1370X300 | 1270*300 | 1370*300 |
Table travel (X/Y/Z) | mm | 720/300/400 | 820/300/400 | 900/380/400 | 1000/380/400 |
Rapid speed of table (X/Y/Z) | mm/min | 1000/1000/750 | |||
Spindle taper | --- | 3HP: R8 or ISO30; 5HP: ISO40 | |||
IS040 | |||||
Table feed (X/Y/Z) | mm/min | XY:30-830 Z:23-625 | |||
Distance between horizontal nose and table surface | mm | 75-475 | |||
Distance between spindle axis and ram surface | mm | 200 | |||
Spindle speed range | r/min | 43-3225 | |||
65-4660 (16速) | |||||
12级steps 35-1500 | |||||
T-slots(No./width/pitch) | mm | 3/14/80 | |||
Arm travel | mm | 450 | |||
Main motor power | --- | 3HP or 5HP | |||
3Kw | |||||
Torque of X/Y/Z axis AC servo motor | N.m | 10 | |||
Overall size | mm | 1720×1680×2350 | 1820×1680×2350 | 1720×1680×2350 | 1820×1680×2350 |
Net weight | kg | 1650 | 1700 | 1700 | 1750 |
- Size: 8
- Place of Origin: Tengzhou, Shandong,China
- Brand Name: YOURONGXILI
- Model Number: XL6330
- Weight: 1700.000 kg
Standard Accessories
S.NO | NAME | SPEC | QTY |
1 | Main machine | 1 | |
2 | Hex wrench | 5 | 1 |
3 | Hex wrench | 6 | 1 |
4 | Hex wrench | 10 | 1 |
5 | Fork wrench | 17*19 | 1 |
6 | Fork wrench | 22*24 | 1 |
7 | Fork wrench | 32*36 | 1 |
8 | Elevating crank | 1 | |
9 | Machine vise | QB136 | 1 |
10 | Milling arbor | 7:24 ISO40 Ø27 | |
11 | Draw bar | 1 | |
12 | nut | M16 | 1 |
13 | washer | 16 | 2 |
14 | Operation manual | 1 | |
15 | Quality certificate | 1 | |
16 | Work lamp | 1 | |
17 | Coolant system | 1 |
