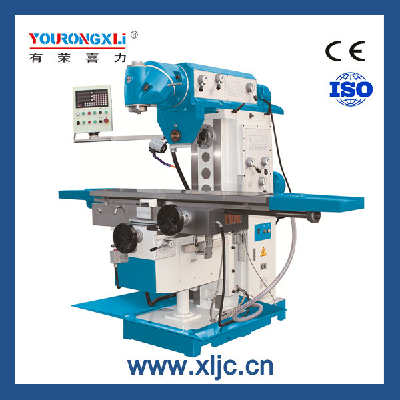

XL6436 KNUTH quality uwf universal milling machine

XL6436 KNUTH quality uwf universal milling machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets per Month
  • Port: Qingdao
  • Payment Terms: L/C,D/P,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:1999-08-26
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  10cbm
  • Place of Origin:  Tengzhou ,Shandong, China
  • Brand Name:  YOURONGXILI
  • Model Number:  XL6436
  • Weight: 2650.000 kg

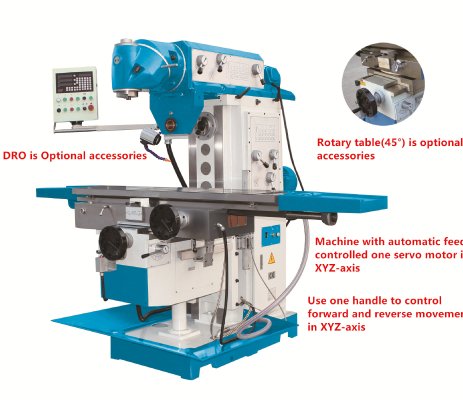

XL6436 KNUTH quality uwf universal milling machine

1.Swivel head 360

2.vertical and horizontal milling head

3.Rotary table can be ordered

4.Driven by servo motor

5.CNC System can be installed

6.4th axis:cnc rotary table, cnc dividing head is available



Specification

Specifications

Unit

XL6436

XL6436C

XL6436CL

Table size

mm

1325×360

1600×360

Table travel (X/Y/Z)

mm

750/320/460

1100/320/450

1300/320/450

Table feed(X/Y/Z)

mm/min

30~750/20~500/15~375

Spindle taper


724 IS050 (H)       724 IS050 (V)

Arm travel

mm

550

Distance between spindle nose and table surface

mm



196-656



196-646

Distance between horizontal nose and table surface

mm

20-480

20-470

Distance between spindle axis and arm surface

mm

200

Spindle speed range

r.p.m

12 steps 60-1750 (V)   12 steps 60-1800 (H)

T-slots(NO./width/pitch)

mm

3/18/80

Main motor power

Kw

5.5 (H)  4 (V)

3 to feed Ac servo motor torque

N.m

10

Overall size

mm

1800×2100×2000

2245×2100×2000

2520×2100×2000

Net weight

kg

2685

2750

2800


Standard Accessories

Name

Model no.

QTY

7:24 middle cover

7:24 ISO50/MS4

1

Horizontal arbor assembly

Ф27

1

 Horizontal arbor assembly

Ф32

1

Drawbar

M24

2

Double-ended wrench

S22-24

1

Double-ended wrench

S17-19

1

Double-ended wrench

S36-41

1

Inner hexagonal wrench

5

1

Inner hexagonal wrench

10

1

Inner hexagonal wrench

14

1

QB13 Series Machine vice

160mm

1

sleeve

M24

1

Washer

M24

1

Iso 50 sets milling chuck

7:24 ISO50  4\5\6\8\10\12\14\16

1

Taper shanl sets milling cutter arbor

7:24 ISO50-Ф32


Operation manual


1

The packing list


1

certification


1

EP100 series servo drive manual


1


  • Size:  10cbm
  • Place of Origin:  Tengzhou ,Shandong, China
  • Brand Name:  YOURONGXILI
  • Model Number:  XL6436
  • Weight: 2650.000 kg

Specifications

Unit

XL6436

XL6436C

XL6436CL

Table size

mm

1325×360

1600×360

Table travel (X/Y/Z)

mm

750/320/460

1100/320/450

1300/320/450

Table feed(X/Y/Z)

mm/min

30~750/20~500/15~375

Spindle taper


724 IS050 (H)       724 IS050 (V)

Arm travel

mm

550

Distance between spindle nose and table surface

mm



196-656



196-646

Distance between horizontal nose and table surface

mm

20-480

20-470

Distance between spindle axis and arm surface

mm

200

Spindle speed range

r.p.m

12 steps 60-1750 (V)   12 steps 60-1800 (H)

T-slots(NO./width/pitch)

mm

3/18/80

Main motor power

Kw

5.5 (H)  4 (V)

3 to feed Ac servo motor torque

N.m

10

Overall size

mm

1800×2100×2000

2245×2100×2000

2520×2100×2000

Net weight

kg

2685

2750

2800
