- Size: 10cbm
- Place of Origin: Tengzhou ,Shandong, China
- Brand Name: YOURONGXILI
- Model Number: XL6436
- Weight: 2650.000 kg

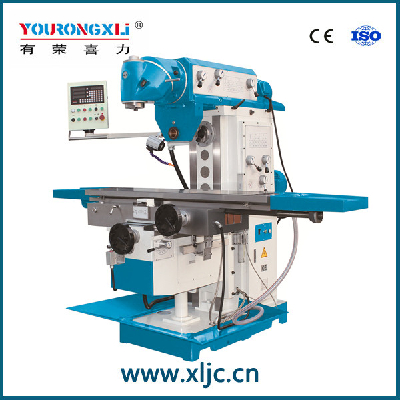

XL6436 Swivel Head Universal Milling Machine milling machine
Specification
Specifications | Unit | XL6436 | XL6436C | XL6436CL | |
Table size | mm | 1325×360 | 1600×360 | ||
Table travel (X/Y/Z) | mm | 750/320/460 | 1100/320/450 | 1300/320/450 | |
Table feed(X/Y/Z) | mm/min | 30~750/20~500/15~375 | |||
Spindle taper | 7：24 IS050 (H) 7：24 IS050 (V) | ||||
Arm travel | mm | 550 | |||
Distance between spindle nose and table surface | mm |
196-656
| 196-646 | ||
Distance between horizontal nose and table surface | mm | 20-480 | 20-470 | ||
Distance between spindle axis and arm surface | mm | 200 | |||
Spindle speed range | r.p.m | 12 steps 60-1750 (V) 12 steps 60-1800 (H) | |||
T-slots(NO./width/pitch) | mm | 3/18/80 | |||
Main motor power | Kw | 5.5 (H) 4 (V) | |||
3 to feed Ac servo motor torque | N.m | 10 | |||
Overall size | mm | 1800×2100×2000 | 2245×2100×2000 | 2520×2100×2000 | |
Net weight | kg | 2685 | 2750 | 2800 | |
