- Size: 10cbm
- Place of Origin: Tengzhou ,Shandong, China
- Brand Name: YOURONGXILI
- Model Number: XQ6432
- Weight: 1850.000 kg

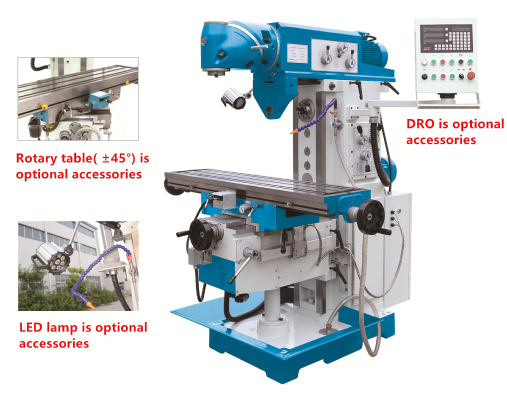

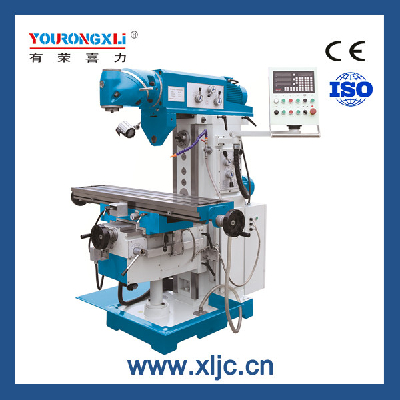

XQ6432 iso40 spindle taper universal milling machine with DRO
Specification
Specifications | Unit | XQ6432 | XQ6432A | XQ6432B | XQ6432C |
Table size | mm | 1270*320 | 1370*320 | 1270*320 | 1370*320 |
T-slots(NO./width/pitch) | mm | 3*14*80 | |||
Max table travel - X/Y/Z | mm | 720/300/400 | 820/300/400 | 900/380/400 | 1000/380/400 |
Spindle taper | - | 7:24 ISO40 | |||
Max rotary angle of table | - | ||||
Distance between spindle center line and table surface | mm | 75-475 | |||
Distance between spindle nose and table surface | mm | 260-660 | |||
Distance from horizontal spindle center line to arm surface | mm | 180 | |||
Spindle speed range | r.p.m | (V)11 steps 45-1660; (H)12 steps 35-1500 | |||
Arm travel | mm | 400 | |||
Table feed(X/Y/Z) | mm/min | X Y:30-830 Z: 23-625 | |||
Table rapid speed | 1335/1335/1000 | ||||
Main motor power | Kw | 3 | |||
Torque of X/Y/Z axis AC servo motor | Nm | 10 | |||
Cooling pump motor power | W | 40 | |||
Flow of cooling pump | L/m | 12 | |||
Overall size | mm | 1720*1680*1860 | 1820*1680*1860 | 1720*1680*1860 | 1820*1680*1860 |
Net weight | Kg | 1875 | 1925 | 1925 | 1975 |
- Size: 10cbm
- Place of Origin: Tengzhou ,Shandong, China
- Brand Name: YOURONGXILI
- Model Number: XQ6432
- Weight: 1850.000 kg
Standard Accessories
No. | Name | Detail | Qua. |
1 | Milling machine | 1 | |
2 | ISO40 sets milling chuck | 7：24 ISO40 4、5、6、8、10、12、14、16 | 1 |
3 | Taper shank sets milling cutter arbor | 7:24 ISO40-Φ27 | 1 |
4 | Draw bar | M16(vertical, horizontal) | 1 |
5 | Machine vise | QB136 | 1 |
6 | Allen Wrench | 5、6、10、12 | 1 |
7 | Double-ended wrench | 17*19 | 1 |
8 | Double-ended wrench | 22*24 | 1 |
9 | Double-ended wrench | 32*36 | 1 |
10 | milling cutter arbor | Φ27 | 1 |
11 | Nut | M16 | 2 |
12 | Washer | 16 | 2 |
13 | Operation manual | 1 | |
14 | Certification | 1 | |
15 | Packing list | 1 | |
16 | EP100 series servo drive manual | 1 |
